Fuses that are located inside the car

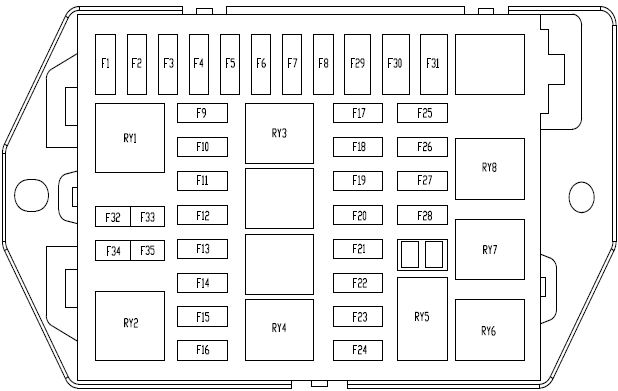

- Fuses and relay located inside the car
- fuses_d2s.JPG (45.15 KiB) Viewed 28 times
F2: Horn
F3: Multimedia system
F4: Low and high beams
F5: Instrument cluster
F6: Turn signal lamp
F7: Rear defrosting
F8: Central locking system
F9: ACC gear
F10: ON gear
F11: Windshield wiper
F12: Gear switch / Wiper switch
F13: Side mirror / Charger B
F14: Motor controller / Air conditioning panel
F15: Vacuum boosting system
F16: ACC signal
F17: Reading lamp
F18: Charger A
F19: ESCL / Anti-theft
F20: PEPS controller A
F21: PEPS controller B
F22: BCM / Diagnosis interface
F23: Corner lamp / ESCL
F24: Small lamp
F25: ACU
F26: Null
F27: ON gear signal / BCM
F28: Backup power
F29: Condenser fan
F30: Window
F31: Blower
F32: 5A standby fuse
F33: 10A standby fuse
F34: 15A standby fuse
F35: 20A standby fuse
Relays
RY1: Null
RY2: Charging relay
RY3: Condenser fan relay
RY4: ACC gear relay
RY5: Blower relay
RY6: ON gear relay
RY7: Horn relay
RY8: Compressor relay

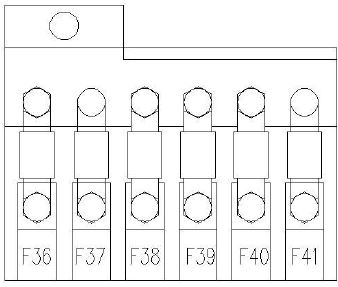

- Fuses and relay located under the hood
- fuses_d2s_front.JPG (20.42 KiB) Viewed 28 times
Fuses that are located under the hood
F36: DC-DC
F37: IEC
F38: EPS
F39: ABS1
F40: ABS2
F41: Null
